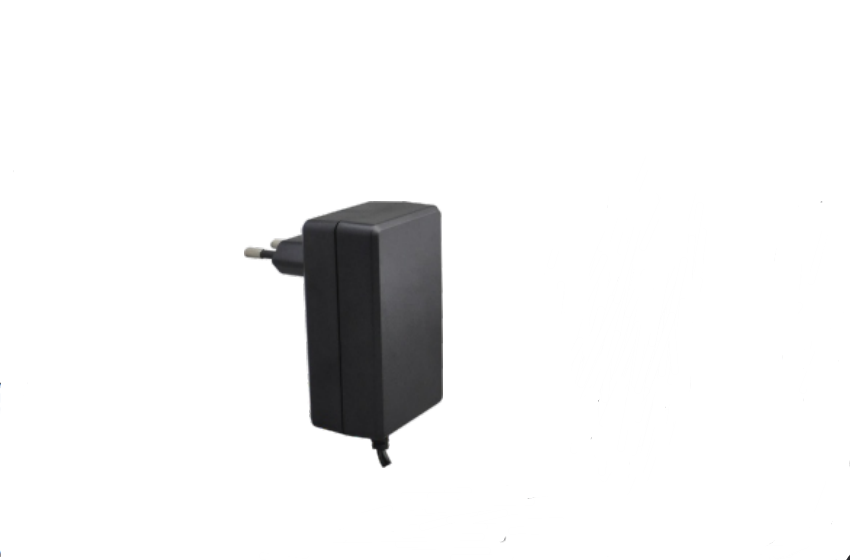

24W系列GS電源適配器
24~30W Switching Adapter
Electronic properties
Input Voltage············90VAC~264VAC
Input current············0.5A Max
Input Frequency···········47HZ~63HZ
Line regulati…
24~30W Switching Adapter
Electronic properties
Input Voltage············90VAC~264VAC
Input current············0.5A Max
Input Frequency···········47HZ~63HZ
Line regulation···········1% Max
Load regulation···········±5%
Temperature·············0~40℃
Storage temperature·········10℃~70℃
Relative Humidity··········5%~90%
Meet Efficiency Level ·······Level VI
Output Characteristics:
Input Voltage OutputCurren Output Power5~7.9VDC 0.01~3.0A 23.7W MAX
8~11.0VDC 0.01~3.0A 27.0W MAX
11.1~15.0VDC 0.01~2.5A 30.0W MAX
15.1~24VDC 0.01~1.5A 30.0W MAX
24.1~32VDC 0.01~1.24A 30.0W MAX
Safety
CB ------------IEC61558/IEC62368/IEC60335-1
GS-------------IEC61558/IEC62368/IEC60335-1
SAA------------AS/NZS61558
ETL------------ETL1310/ETL62368
BSMI-----------CNS13438(95年版)、CNS14336-1(99年版)、符合CNS15663
CQC------------GB4706
PSB------------IEC61558
EAC------------IEC61558
PSE------------J61558
COC------------IEC61558
